Aiano has expanded its range of wire-mesh guards for Dimplex QXD with the introduction of safety guards in a black powder-coated finish. The quartz heater guards are made to the same high standards that customers have come to expect from Aiano.

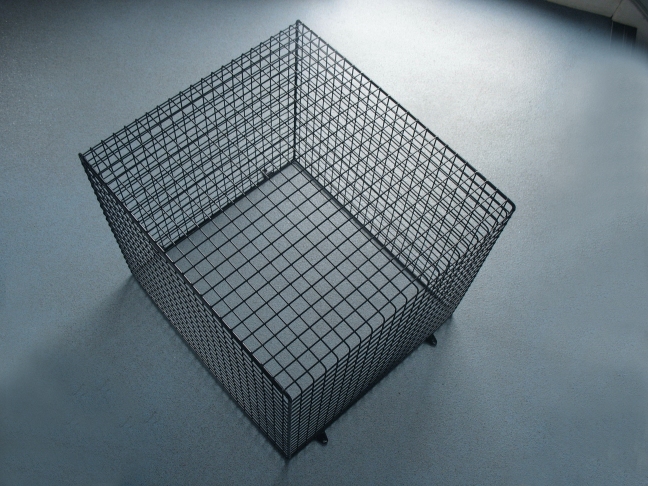

One of the QXD3000-AIA-BLK quartz heater guards

QXD3000-AIA-BLK installed heater guard

Aiano Quartz heater guards- Black

– Strong reliable guards
– Protect heaters from damage
– Black powder-coated
– Bespoke service
– made at our London workshop
– made from European and British steel
– thoroughly tested





AIANO Quartz heater guard features- Black powder-coated

Aiano have been manufacturing safety guards for the Dimplex QXD range for as long as the heaters have been on the market. However, based on customer feedback, it became apparent that there was a demand for the guard to be stocked in a black powder-coated finish. The black powder-coated finish matches with the colour of the Dimplex QXD which, in turn means that the guard is more unobtrusive than the white powder-coated finish. The guards are now in stock and available to order via next day delivery.  All Aiano safety guards are manufactured in our London workshop using British and European sourced steel.

AIANO and Dimplex

Dimplex Quartz heaters emit an intense focused heat and are often used in difficult to heat, open spaces. The manufacturer recommends that the heaters are installed at a height of 2-4m, and as such the primary role of the Dimplex QXD guard is to protect the heater from accidental damage. The design of the guard was a result of co-operation between Dimplex and Aiano. The quartz heater guards were tested at Dimplex facilities  to ensure that they  meet all health and safety requirements.

Aiano Expertise

AIANO guards are the result of decades of experience and a constant effort to keep our guards at the forefront of innovation. C. Aiano and Sons is the oldest manufacturer of wire-mesh products in our industry and safety guards are a major part of our business. We have been making wire guards for health & safety for more than 150 years. Due to this experience Aiano are the only heater guard manufacturer on the market recommended by Dimplex.

Our senior design engineers have more than 70 years combined experience, and because the AIANO business has stayed in the family for all of its 150 plus years in business, the design knowledge and expertise has been transferred from generation to generation.

AIANO QXD3000-AIA-BLK quartz heater guards


Technical specification

The Quartz heater guards are strong and well made from 25 x 25 x 2.64mm (1” x 1” 12swg) steel weld mesh on a 5.35 frame. AIANO Quartz heater guards are built to the standard customers expect from AIANO products. They can be finished in WHITE or BLACK powder coating.

Product Code
To Suit
Dimplex Model
To Suit
Creda Model
Guard Size (mm) WxHxD
SCH12CXL12711 x 787 x 279
SCH18CXL18SFHA 18AW940 x 787 x 279
SCH24CXL24SFHA24AW1168 x 787 x 279
TSF24TSF24K940 x 762 x 330
TSF32TSF32K1092 x 762 x 330
TSF42TSF42K1219 x 762 x 330
TSR12CWTSR12CW/ACW711 x 838 x 254
TSR18CWTSR18CW/ACW940 x 838 x 254
TSR24CWTSR24CW/ACW1168 x 838 x 254
VFM24i-AIAVFM24i940 x 762 x 356
VFM32i-AIAVFM32i1092 x 762 x 356
VFM40i-AIAVFM40i1219 x 762 x 356
VFM48i-AIAVFM48i1371 x 762 x 356
