AIANO QXD3000-AIA – Quartz heater guard

£213.06 (inc. VAT)

Wire mesh guard to suit Dimplex QXD3000 quartz heater

In stock


AIANO QXD3000-AIA quartz heater guard is a white coated quartz heater cover designed to fit the Dimplex 3.0 kW quartz ray heater, the QXD3000 (heater size w440mm x h380mm x d310mm) and its equivalents.

The QXD3000-AIA will help protect your quartz heater from damage. The guard will prevent children or vulnerable adults from touching the heater which gives out an intense, focused heat, whilst allowing optimum heat circulation.

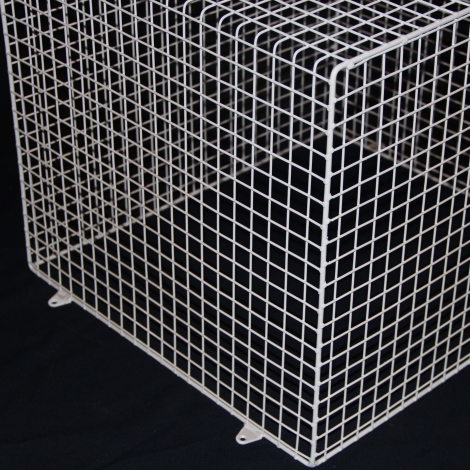

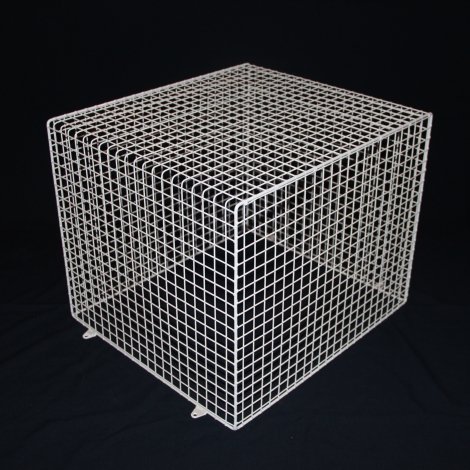

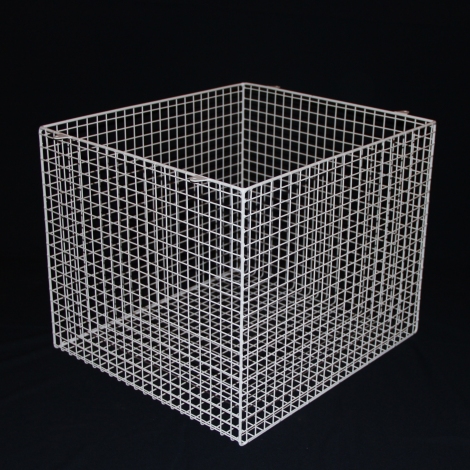

This five-sided, wall-mounted, quartz radiator guard is made from steel weld mesh and is powder-coated white. The guards have welded lugs for fixing to the wall. The QXD3000-AIA will completely enclose your Dimplex quartz heater to provide health and safety protection in a variety of environments.

The depth of the AIANO QXD3000-AIA quartz heater guard is sufficient enough to leave adequate clearance between the guard and the quartz heater regardless of the angle at which the quartz heater has been installed.

Which guard size? For most standard types of space heater it is recommended that there be clearance of not less than 75mm (3 inches) between the heater and the guard.

Compatibility: AIANO QXD3000-AIA quartz heater guard is designed to fit many popular makes of 3.0kw Quartz heater with the following dimensions: width 440mm x height 506mm x depth 310mm.

This protective wire mesh quartz heater guard is also available in black, please see QX3000-AIA-BLK.

Key features:

  • AIANO radiator guards are recommended by Dimplex.
  • Materials: 25mm x 25mm steel weld mesh on a steel frame with welded lugs
  • Colour: white
  • Clearance: the guard allows a minimum clearance of 75mm between the heater and the guard to ensure that the guard is finger-safe and does not become too warm.
  • Origin: the guard is manufactured in the UK from British and EU-sourced steel.

Contact us for further advice or guidance on selecting the right guard for your heaters.

Additional information

Weight 48.55 kg
Dimensions 66 × 53.5 × 55 cm
Product Type

Quartz Heater Guard



Guard Manufacturer

Manufactured in the UK by AIANO


Made from 1" x 1" x 12swg (25 x 25 x 2.64mm) steel weld mesh on a 5swg (5.38mm) frame, with 4 welded lugs and powder-coated white after manufacture.

Suits Heater Models

Dimplex QXD3000


Made from steel produced in the UK and EU.

Short Description

Wire mesh guard to suit Dimplex QXD3000 quartz heater

Guard Size

w584 x h533 x d508mm

Heater Size

w440 x h380 x d310mm
