AIANO PH3000 ST sloping top panel heater guard

£258.47£286.92 (inc. VAT)

Wire mesh radiator guard to suit 3.00kW panel heater, or heaters of equivalent size

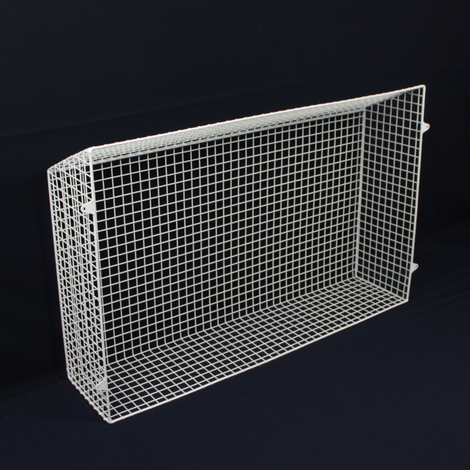

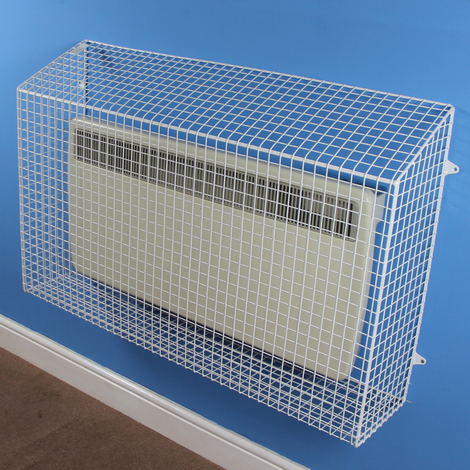

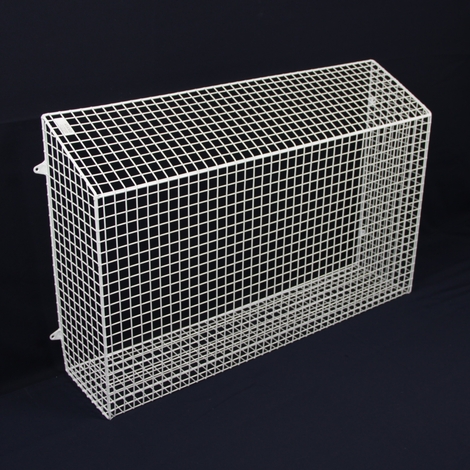

AIANO PH3000 ST sloping top panel heater guard is designed to fit the Dimplex PLX3000 panel heater (3.00 kW) and its equivalents with a heater size of width 860mm x height 430mm x depth 143mm (for guard size, see Additional Information).

The AIANO PH3000 ST sloping top panel heater guard will help protect your heater from damage and prevent children or adults from touching the heater, all the while allowing for optimum heat circulation.

This five-sided, wall-mounted panel heater guard is made from steel weld mesh and is powder-coated white. The guards have welded lugs for fixing to the wall. The PH3000 ST panel heater guard will completely enclose your wall-mounted panel heater, or similar heater, to provide health and safety protection in a variety of environments.

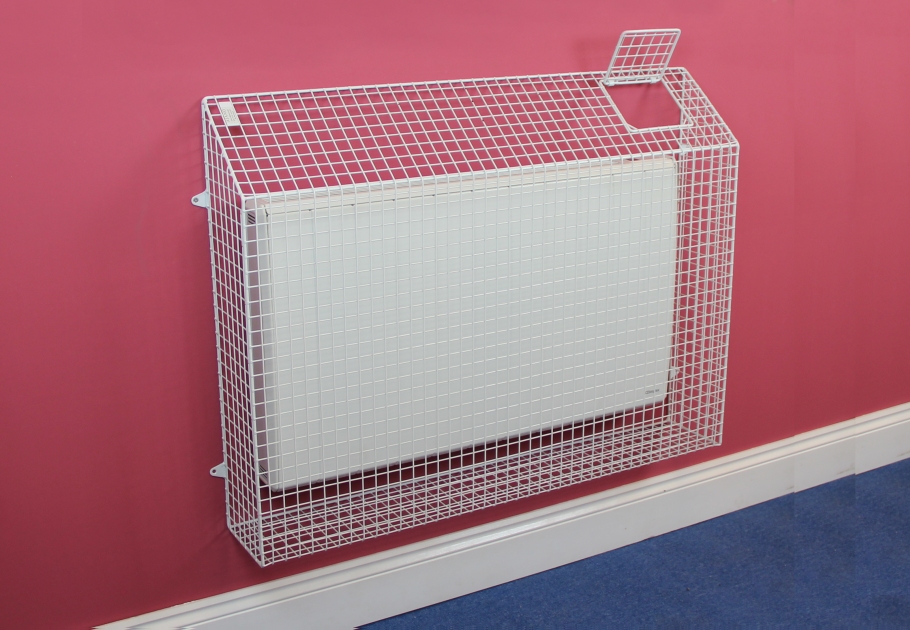

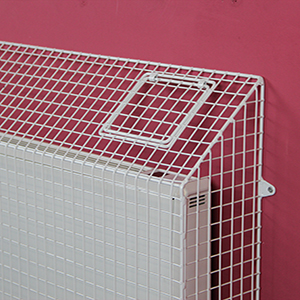

Furthermore, the guard features a sloping top to provide additional health & safety protection. AIANO sloping top heater guards prevent people from resting on top of the guard. The sloping top also prevents objects from being placed on top of the guard. Covering or obstructing the guard may impede the efficiency and safe operation of both the heater and the guard.

Which guard size? For most standard types of heater, it is recommended that there be a minimum clearance of 75mm (3 inches) between the heater and the guard.

Compatibility: The AIANO PH3000 ST sloping top panel heater guard is designed to fit many popular makes of 3.00kW panel heater, or heaters of an equivalent size.

C. Aiano & Sons manufactures quality, custom-made wire mesh products and has been doing so for 160 years.

Key features:

  • AIANO panel heater guards feature on the Dimplex website

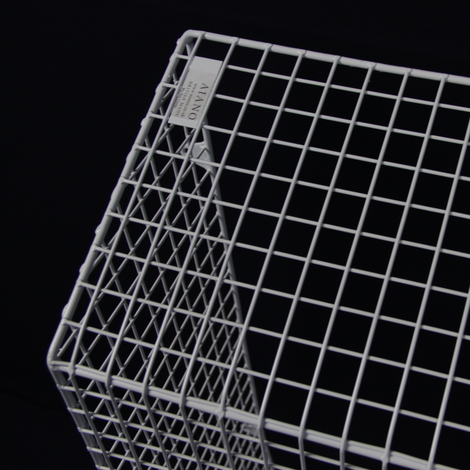

  • Materials: 25mm x 25mm steel weld mesh on a steel frame with welded lugs
  • Colour: white
  • Clearance: the guard allows a clearance of 75mm between the heater and the guard to ensure that the guard is finger-safe and does not become too warm
  • Origin: the guard is manufactured in the UK from British and EU-sourced steel

Contact us for further advice or guidance on selecting the right guard for your heaters.

Additional information

Weight 47.25 kg
Dimensions 108 × 70 × 25 cm
Product Type

Panel Heater Guard



Guard Manufacturer

Manufactured in the UK by AIANO


Made from 1" x 1" x 12swg (25 x 25 x 2.64mm) steel weld mesh on a ¼” (6.35mm) frame, with 4 welded lugs and powder-coated white after manufacture.

Suits Heater Models

Dimplex PLX2000, EPX2000, RPX150N, Creda TPRIII 2000, Consort Claudgen PLC200, Sunhouse SPHN200, Heatstore HSP2000, Newlec NLPH2000, NLPH3000


Made from steel produced in the UK and EU.

Short Description

Wire mesh radiator guard to suit 3.00kW panel heater, or heaters of equivalent size

Guard Size

w1016 x h584/686 x d229 mm

Heater Size

w860 x h430 x d108mm

Heater Make

Consort Claudgen, Creda, Dimplex, Heatstore, Newlec, Sunhouse
