FLOODLIGHT GUARDS

Aiano’s distinctive wire mesh floodlight guards are manufactured in Britain from steel weld mesh on a round bar frame with welded lugs. The guards are hot dip galvanised for outdoor use.  Many other floodlight guards on the market are zinc electroplated rather than galvanised, and there is a strong risk of corrosion within months of installation. AIANO floodlight guards for external use are hot dip galvanising which offers the best possible protection against corrosion after stainless steel.

AIANO wire mesh floodlight guards are the result of decades of experience and a constant effort to keep our manufacturing processes at the forefront of innovation. Our light guards have evolved over time, and our product designs continue to be enhanced in the light of experience. Unlike most other products on the market AIANO guards have a strong round bar frame.

We have a wide range of standard floodlight guards, most of which we keep in stock. We also make floodlight guards to order from both mild steel and stainless steel.  If you cannot find what you need please contact us for a quote.

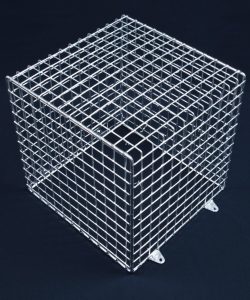

Aiano FLS/S for small floodlights

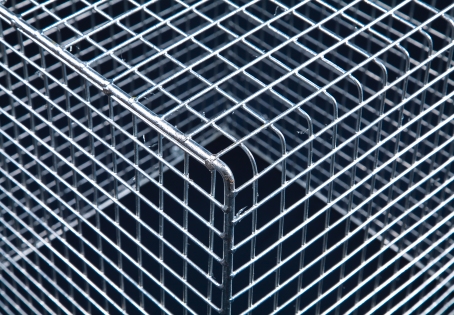

AIANO floodlight guards are beautiful and strong

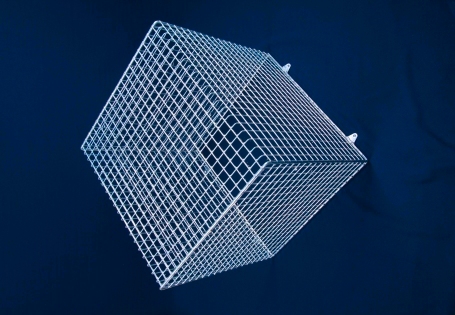

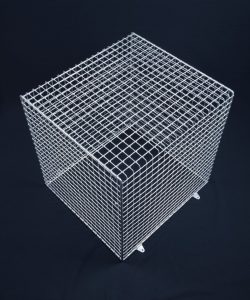

AIANO FLMini for medium-sized floodlights

How to choose your floodlight guard

Aiano’s manufactures a wide selection of floodlight guards that fit many popular products on the market. However, before placing an order for our standard guards be sure to check that you have the correct guard size.

It is important to have some distance between the floodlight and the guard – we call this clearance. The strength of wire mesh comes from its ability to absorb impact. If the guard is too close to the fitting there is a risk of the mesh ‘giving’ and damaging the light fitting it is designed to protect. Therefore selecting the correct guard size is of paramount importance.

When we calculate the size of a floodlight guard we usually apply the following clearance:

  • width – 100mm
  • height – 100mm
  • depth from the wall – 50mm

However, many floodlight fittings are installed on a bracket that allows the beam to be adjusted to the correct angle. Therefore the shape and dimensions of the floodlight guard required will change according to the angle of installation. Please contact us for further information and advice.

Floodlight guards

Product CodeDescriptionGuard Size (mm) W x H x D
FLS/SAiano small standard floodlight guard305 x 305 x 305
FLSPK7Aiano small floodlight guard to suit Thorn SonPak LX7355 x 304 x 431

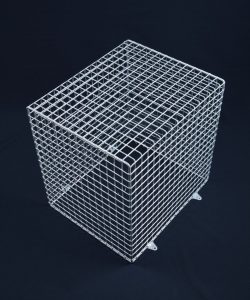

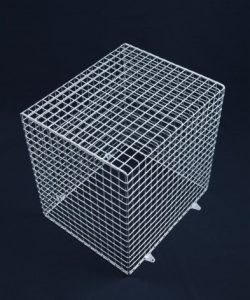

FLMICROAiano medium floodlight guard 355 x 432 x 432
FLTRACAiano medium floodlight guard 330 x 356 x 406
FLMINIAiano medium-large floodlight guard 457 x 508 x 508
FLMaxiFloodAiano large floodlight guard to suit Dominator MaxiFlood533 x 610 x 610

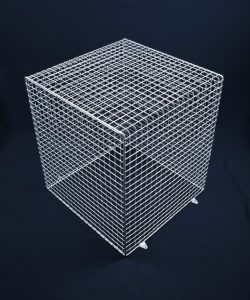

FLSPK25Aiano large floodlight guard to suit Thorn SonPak LX 25/40508 x 508 x 584

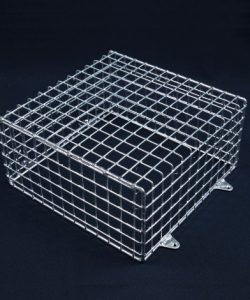

FLS/MAiano small bulkhead guard galvanised305 x 305 x 152
ELS/SAiano small exit sign guard galvanised335 x 228 x 177
ELS/MAiano medium exit sign guard galvanised533 x 228 x 177

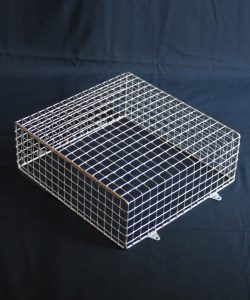

FLMidiMedium bulkhead guard galvanised432 x 406 x 152

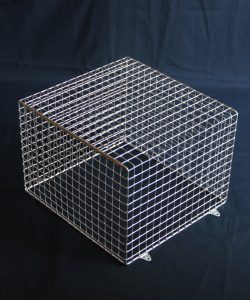

FLMaxiMedium bulkhead guard galvanised432 x 406 x 152

Always check the size of your fitting carefully to ensure selection of the correct guard or call us today on 020 7987 1184 for a quote.
