QUARTZ & CERAMIC HEATER GUARDS

Aiano manufactures quality, distinctive wire mesh quartz heater guards and ceramic heater guards, to provide health and safety in various industrial, public and domestic environments. Aiano has a wide range of radiator guards suitable for the most popular heater models of major suppliers like Dimplex, Creda, Heatstore and many more.

AIANO worked in cooperation with Dimplex to design and develop a wire guard to protect the popular Dimplex QXD range of quartz heaters.

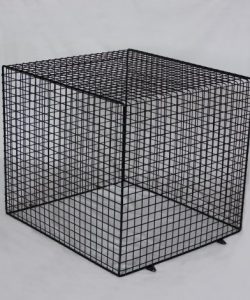

Aiano quartz heater guard coated black

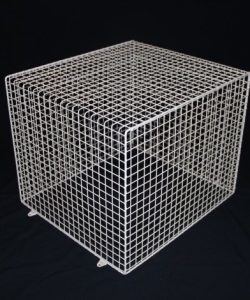

Aiano QXD3000-AIA quartz heater guard

QXD3000-AIA

How to choose your quartz heater guard or ceramic heater guard

Aiano’s manufactures a wide selection of quartz heater guards and ceramic heater guards that fit many popular heaters on the market. However, before placing an order for our standard guards be sure to check that you have the correct guard size.

It is important to have some distance between the heater and the guard – we call this clearance. If the guard is too close to the heater, first, there is a risk of the guard itself becoming too hot and, second, vulnerable people can put their fingers through the mesh and touch the heater.. The intensity of heat emitted by quartz and ceramic heaters, together with he need to protect these heaters from damage means the clearance needs to be much greater than for conventional heaters.

When we calculate guard size we will usually add the following clearance to the heater size to ensure that the guard is finger-safe:

  • width – 150mm
  • height – 150mm
  • depth from the wall – 178mm

AIANO guards for Dimplex quartz heaters have been developed in cooperation with Dimplex and tested by Dimplex.

If you are in any doubt about the correct size guard for your heater, please contact us for advice.

Quartz heater guards and ceramic heater guards

Aiano
Product Code
To Suit
Dimplex Model
To Suit
Heatstore Model
Guard Size (mm) WxHxD
QXD1500-AIAQXD1500HSQ7115, HSQ7120584 x 406 x 508
QXD3000-AIAQXD3000584 x 533 x 508
QXD4500-AIAQXD4500584 x 660 x 508
CXD2000V-AIACXD2000V584 x 533 x 457
CXD2000H-AIACXD2000H889 x 406 x 406

Bespoke Quartz Heater Guards

Aiano’s makes heater guards for quartz and ceramic heaters to order according to requirements, for instance we made guards with special brackets to enable the guards to be fitted to the ceiling joints of a refurbished Scout hut in Laurencekirk, Aberdeenshire.

Clip-on Quartz Heater Guards

Aiano’s recommends that a full 5-sided wire mesh heater guard be used for optimum health and safety protection. However, in situation where for some reason a separate guard is not possible, Aiano’s can supply clip-on guards for the 3 Dimplex quartz heater models, TheQXD1500, QXD3000 and QXD4500..

Aiano
Product Code
To Suit
Dimplex Model
To Suit
Creda Model
Guard Size (mm) WxHxD
QXD1500-AIA-CLOQXD1500356 x 140 x 25
QXD3000-AIA-CLOQXD3000356 x 254 x 25
QXD4500-AIA-CLOQXD4500356 x 381 x 25

Aiano’s heater guards are suitable for most makes of heaters, including Dimplex, Creda, Heatstore and Sunhouse. We also make guards for Consort Claudgen, DeLonghi and Stirflow products and other brands and models of heater.

Always check the size of your fitting carefully to ensure selection of the correct guard or call us today on 020 7987 1184 for a quote.
